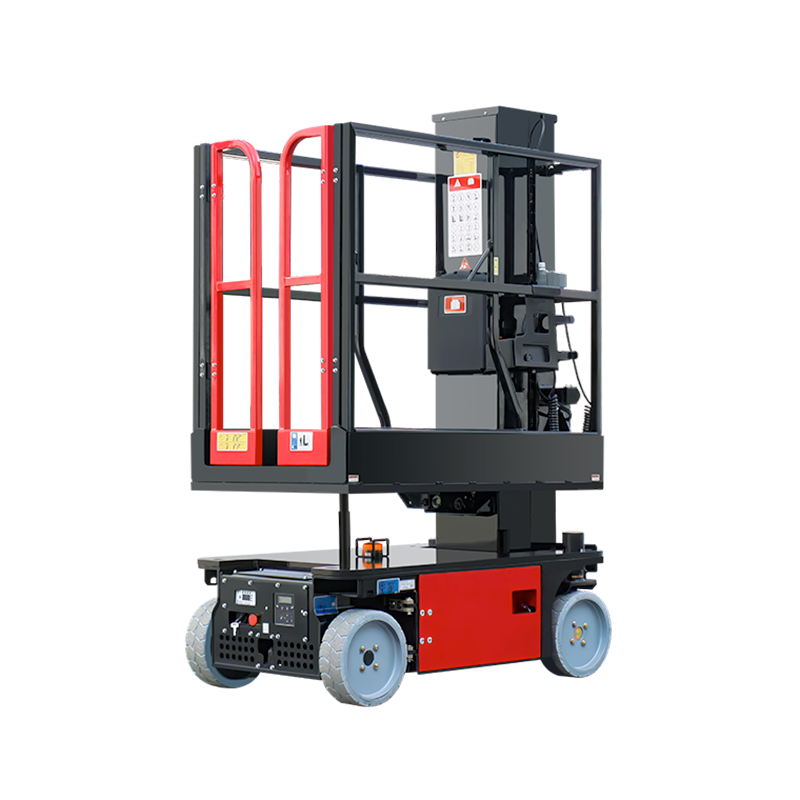

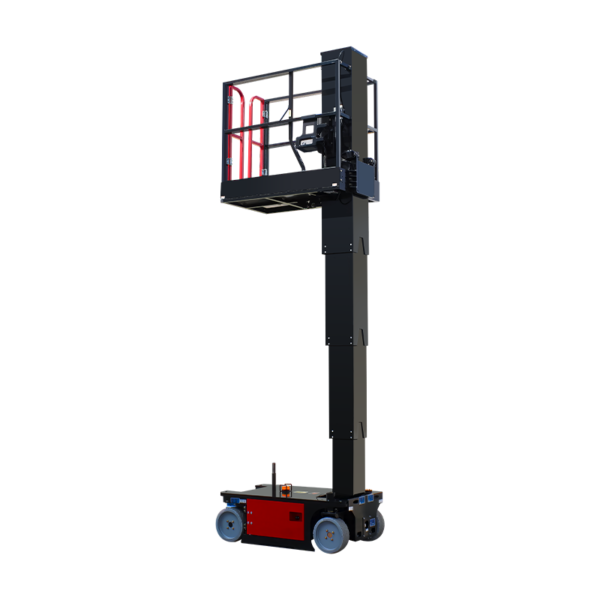

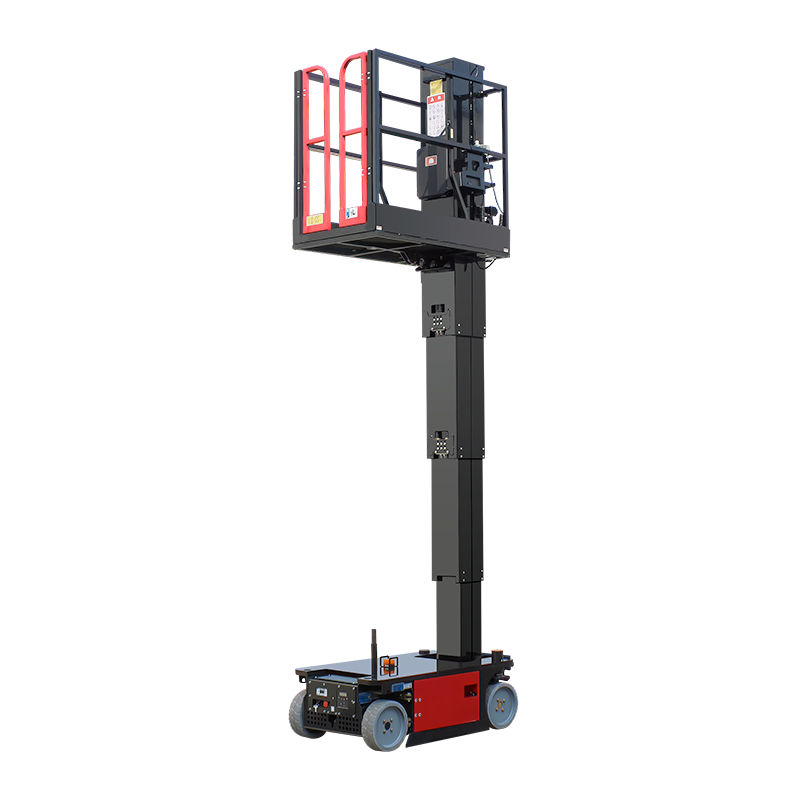

Vertical Mast Lift GMHAMWP6100

The driveable vertical lifts run on electric power via a reliable electric drive system.

These low-level access lifts offer ease of operation and enhanced maneuverability,

ensuring smooth work in narrow aisles.

With their agility, compact dimensions, and straight elevation, ?vertical mast lifts are incredibly easy to drive in the tightest spaces,

making them the perfect AWP and MEWP tools for indoor access. The extension platform provides additional space for greater functionality.

Model	GMH AMWP3.6-6100	GMH AMWP4.8-6100	GMH AMWP6-6100
Max. Working Height	5.6 m	6.8 m	8 m
Max. Platform Height	3.6 m	4.8 m	6 m
Loading Capacity	227 kg	227 kg	159 kg
Ext. Platform Capacity	114 kg	114 kg	114 kg
Overall Length	1.36 m	1.36 m	1.36 m
Overall Width	0.76 m	0.76 m	0.82 m
Overall Height	1.7 m	1.98 m	1.98 m
Platform Dimension	1.3 m x 0.70 m	1.3 m x 0.70 m	1.28 m x 0.70 m
Ext. Platform Length	0.51 m	0.51 m	0.51 m
