Telehandler SWTH4517
$5,000.00
Max. Lifting Height??17.06m
Rated Bearing Capacity??4536kg
Overall Dimension??L*W*H????7340*2560*2540mm
Product Description
SWTH series telescopic handlers are mechanical electric and hydraulic integrated multi-functional handling and lifting logistic equipment
?? International Performance parameters
?? Ideal and efficient loading
?? Widely used at factories, warehouses, terminals, construction sites???

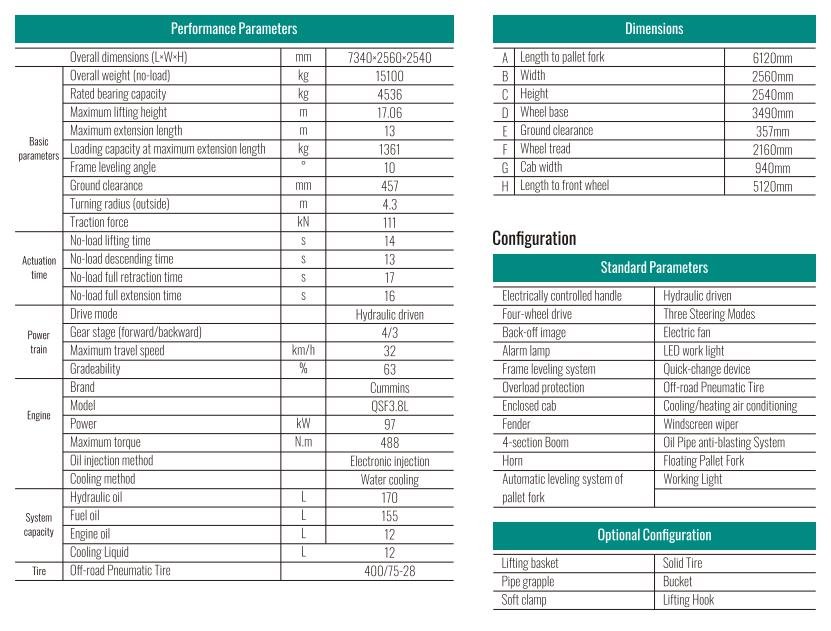

Additional Information
| Overall dimensions (LxWxH) | 7340*2560*2540mm |
|---|---|
| Overall weight (no-load) | 15100kg |
| Rated bearing capacity | 4536kg |
| Maximum lifting height | 17.06m |
| Maximum extension length | 13m |
| Loading capacity at maximum extension length | 1361kg |
| Frame leveling angle | 10?? |
| Ground clearance | 457mm |
| Turning radius (outside) | 4.3m |
| Traction force | 111kN |
| No-load lifting time | 14s |
| No-load descending time | 13s |
| No-load full retraction time | 17s |
| No-load full extension time | 16s |
| Drive mode | Hydraulic driven |
| Gear stage (forward/backward) | 4??3?? |
| Maximum travel speed | 32km/h |
| Gradeability | 63% |
| Brand | Cummins |
| Model | QSF3.8L |
| Power | 97kW |
| Maximum torque | 488N.m |
| Oil injection method | Electronic injection |
| Cooling method | Water cooling |
| Hydraulic oil | 170L |
| Fuel oil | 155L |
| Engine oil | 12L |
| Cooling Liquid | 12L |
| Off-road Pneumatic Tire | 400/75-28 |
