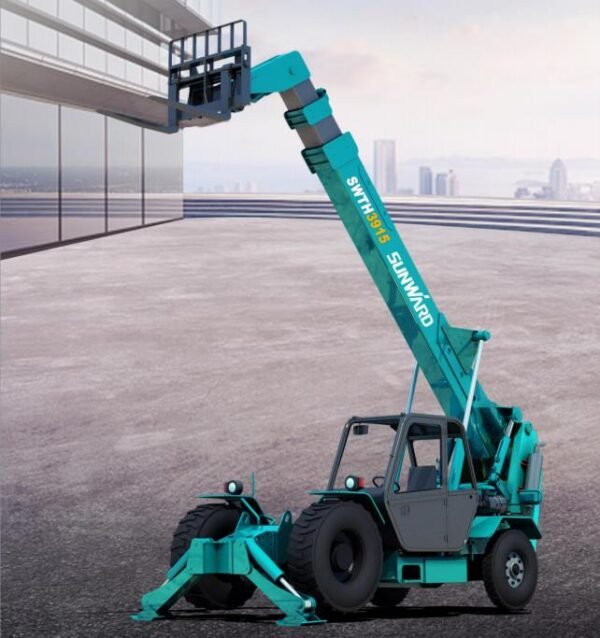

Telehandler SWTH3915
$5,000.00
Max. Lifting Height??14.46m
Rated Bearing Capacity??4000kg
Overall Dimension??L*W*H????7570*2320*2450mm
Product Description
SWTH series telescopic handlers are mechanical electric and hydraulic integrated multi-functional handling and lifting logistic equipment
?? International Performance parameters
?? Ideal and efficient loading
?? Widely used at factories, warehouses, terminals, construction sites???

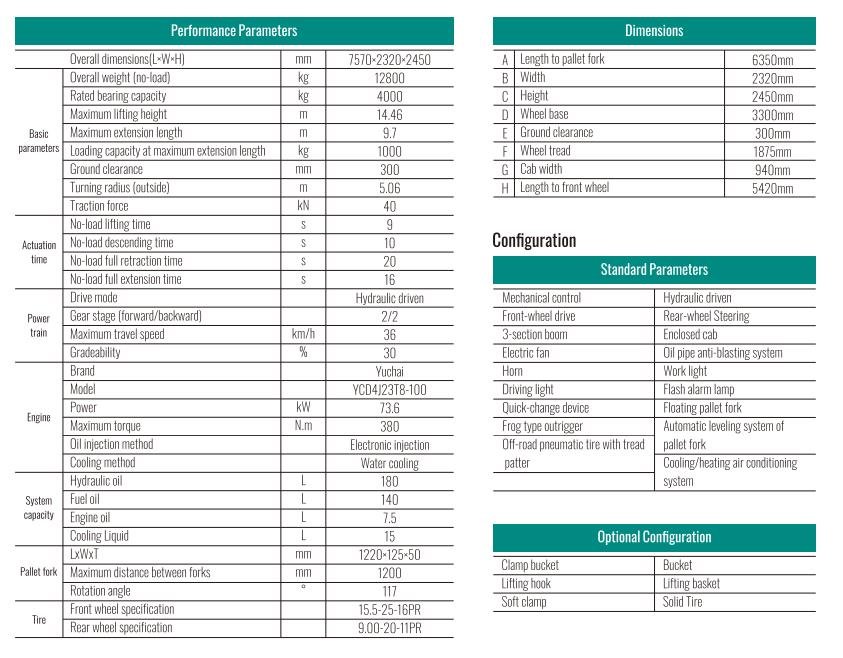

Additional Information
| Overall Dimension??L*W*H?? | 7570*2320*2450mm |
|---|---|
| Overall weight (no-load) | 12800kg |
| Rated bearing capacity | 4000kg |
| Maximum lifting height | 14.46m |
| Maximum extension length | 9.7m |
| Loading capacity at maximum extension length | 1000kg |
| Ground clearance | 300mm |
| Turning radius (outside) | 5.06m |
| Traction force | 40kN |
| No-load lifting time | 9s |
| No-load descending time | 10s |
| No-load full retraction time | 20s |
| No-load full extension time | 16s |
| Drive mode | Hydraulic driven |
| Gear stage (forward/backward) | 2??2?? |
| Maximum travel speed | 36km/h |
| Gradeability | 30% |
| Brand | Yuchai |
| Model | YCD4J23T8-100 |
| Power | 73.6kW |
| Maximum torque | 380N.m |
| Oil injection method | Electronic injection |
| Cooling method | Water cooling |
| Hydraulic oil | 180L |
| Fuel oil | 140L |
| Engine oil | 7.5L |
| Cooling Liquid | 15L |
| LxWxT | 1220*125*50mm |
| Maximum distance between forks | 1200mm |
| Rotation angle | 117?? |
| Front wheel specification | 15.5-25-16PR |
| Rear wheel specification | 9.00-20-11PR |
