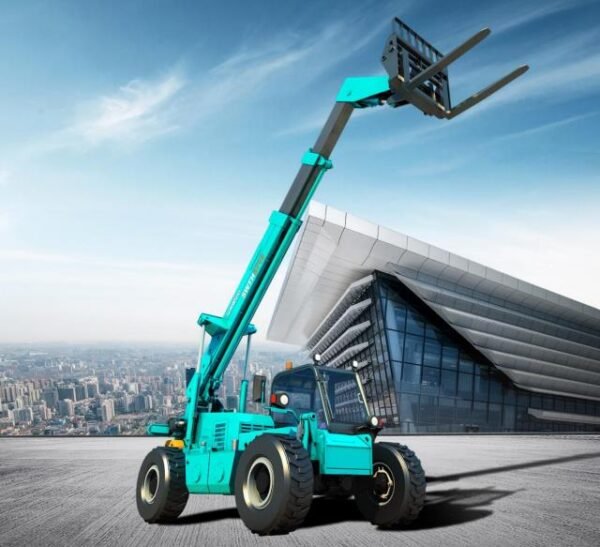

Telehandler SWTH2710
$5,000.00
Max. Lifting Height??10.5m
Rated Bearing Capacity??2722kg
Overall Dimension??L*W*H????6100*2320*2400mm
Product Description
SWTH series telescopic handlers are mechanical electric and hydraulic integrated multi-functional handling and lifting logistic equipment
?? International Performance parameters
?? Ideal and efficient loading
?? Widely used at factories, warehouses, terminals, construction sites????

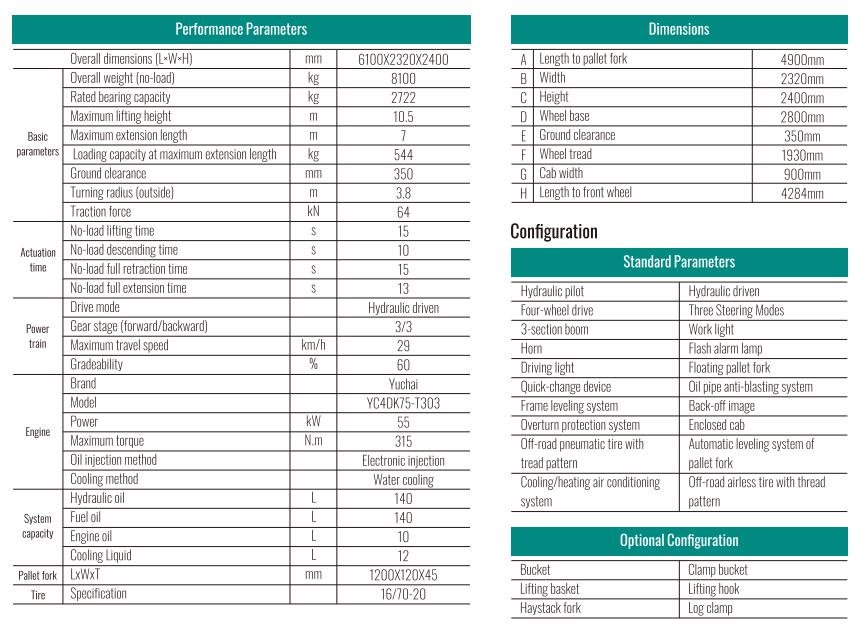

Additional Information
| Overall Dimension??L*W*H?? | 6100*2320*2400mm |
|---|---|
| Overall weight (no-load) | 8100kg |
| Rated bearing capacity | 2722kg |
| Maximum lifting height | 10.5m |
| Maximum extension length | 7m |
| Loading capacity at maximum extension length | 544kg |
| Ground clearance | 350mm |
| Turning radius (outside) | 3.8m |
| Traction force | 64kN |
| No-load lifting time | 15s |
| No-load descending time | 10s |
| No-load full retraction time | 15s |
| No-load full extension time | 13s |
| Drive mode | Hydraulic driven |
| Gear stage (forward/backward) | 3??3?? |
| Maximum travel speed | 29km/h |
| Gradeability | 60% |
| Brand | Yuchai |
| Model | YC4DK75-T303 |
| Power | 55kW |
| Maximum torque | 315N.m |
| Oil injection method | Electronic injection |
| Cooling method | Water cooling |
| Hydraulic oil | 140L |
| Fuel oil | 140L |
| Engine oil | 10L |
| Cooling Liquid | 12L |
| LxWxT | 1200X120X45mm |
| Specification | 16/70-20 |
