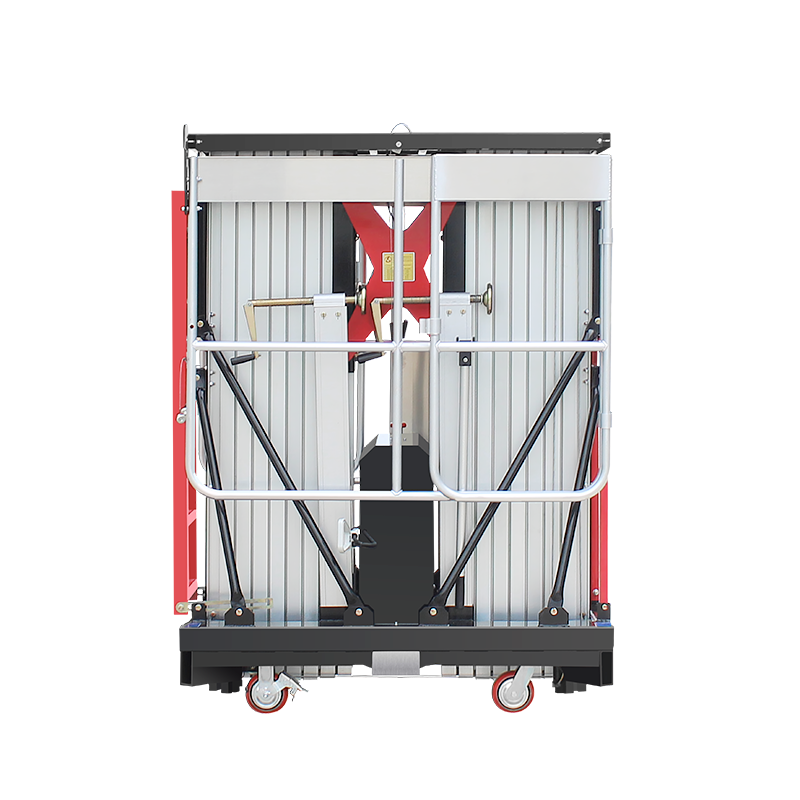

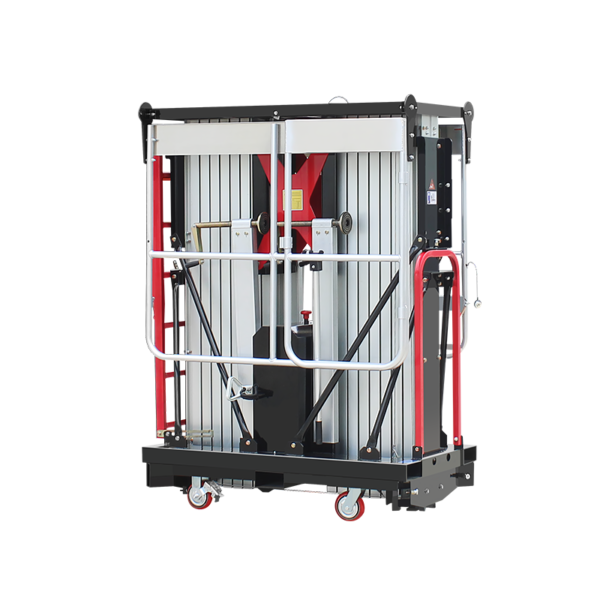

Push Around Vertical Mast Lift GMHGTYW2

The GTWY2 push-around dual mast lift is a cost-effective two-worker lift option.

These double-mast aerial working platforms combine tight access maneuverability

with ample space for two workers and their tools on a large platform.

Model	GMH GTWY2-6	GMH GTWY2-8	GMH GTWY2-10	GMH GTWY2-12	GMH GTWY2-14	GMH GTWY2-16
Max. Working Height	8 m	10 m	12.4 m	14 m	16 m	18 m
Max. Platform Height	6 m	8 m	10 m	12 m	14 m	16 m
Loading Capacity	250 kg	250 kg	250 kg	200 kg	200 kg	150 kg
Occupants	2	2	2	2	2	1
Platform Dimension	1.45 m x 0.7 m	1.45 m x 0.7 m	1.45 m x 0.7 m	1.45 m x 0.7 m	1.8 m x 0.7 m	1.8 m x 0.7 m
Overall Height	1.99 m	1.99 m	1.99 m	1.99 m	2.68 m	2.68 m
Overall Width	0.76 m	0.76 m	0.76 m	0.76 m	0.88 m	0.88 m
Overall Length	1.48 m	1.48 m	1.48 m	1.48 m	1.88 m	1.88 m
Outrigger Coverage	2.2 m x 1.7 m	2.2 m x 1.7 m	2.5 m x 2.1 m	2.8 m x 2.5 m	3.2 m x 2.5 m	3.2 m x 2.5 m
Weight (AC)	610 kg	645 kg	715 kg	750 kg	892 kg	996 kg
Weight (DC)	660 kg	695 kg	765 kg	800 kg	942 kg	1064 kg
AC Motor	1.5 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW	1.5 kW
DC Motor	2 x 12 V	2 x 12 V	2 x 12 V	2 x 12 V	2 x 12 V	2 x 12 V
DC Motor Output	1.6 kW	1.6 kW	1.6 kW	1.6 kW	1.6 kW	1.6 kW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A
