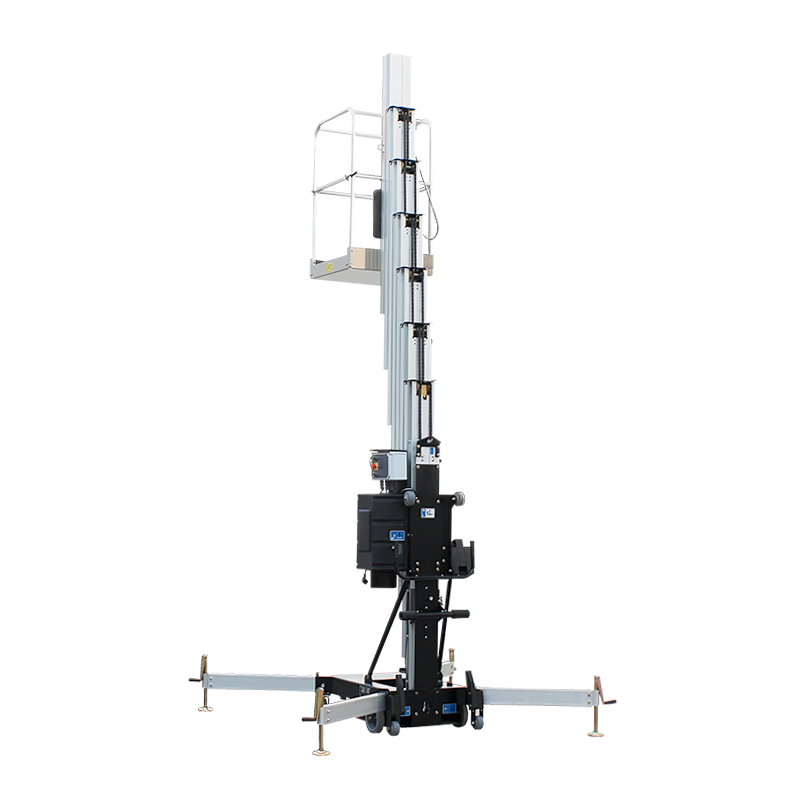

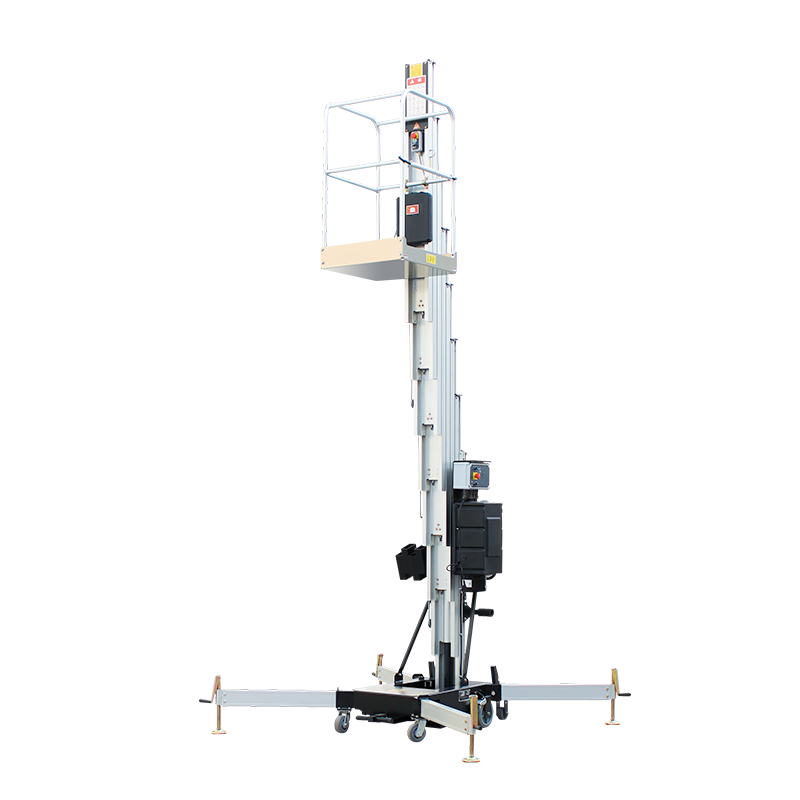

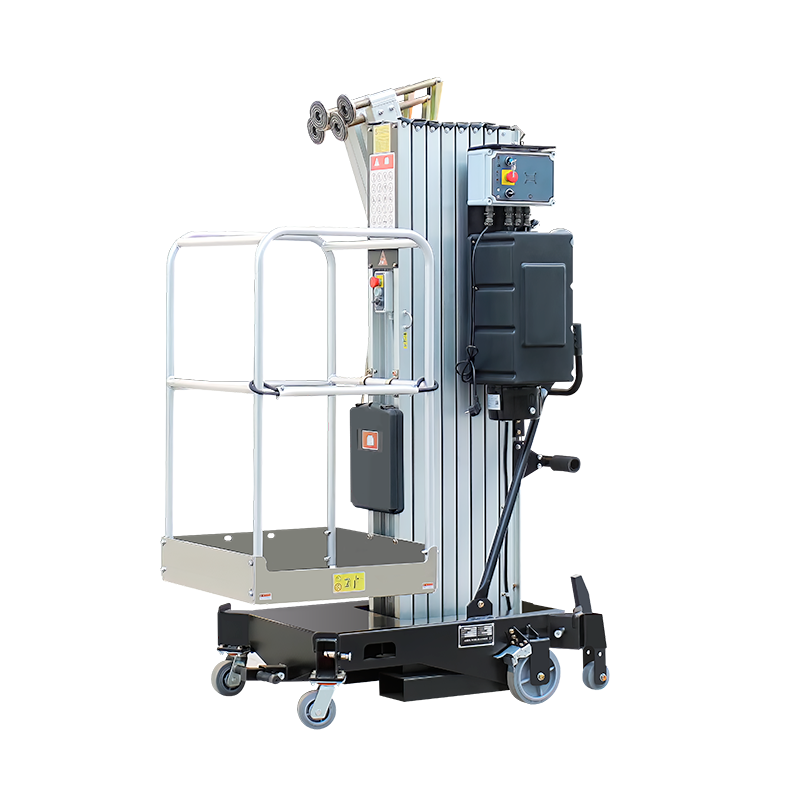

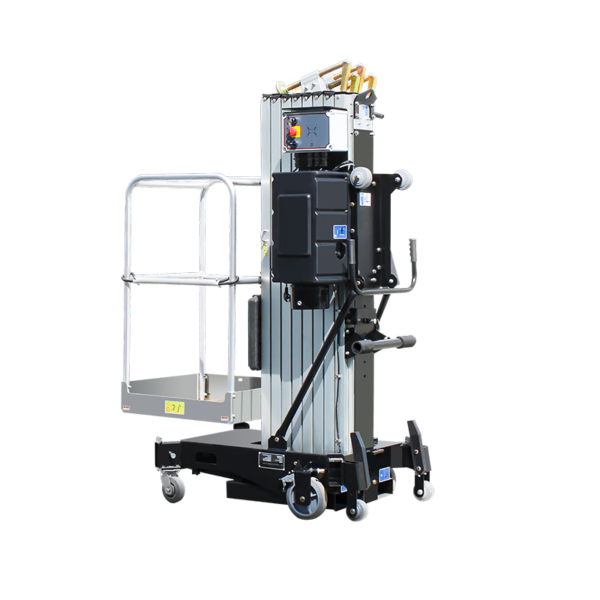

Push Around Vertical Mast Lift GMHAWP-30S/60S
The push-around vertical lifts are single-person AWPs designed to tackle a wide range of tasks.
The compact platform size allows for easy transportation of equipment and materials to the worksite.
These lifts are perfect for tasks such as replacing windows, installing rafters, painting gables, and many other applications.
Product Description
| Model | GMH AWP 30S | GMH AWP 60S |
|---|---|---|
| Max. Working Height | 9.8 m | 14 m |
| Max. Platform Height | 7.8 m | 12 m |
| Loading Capacity | 150 kg | 120 kg |
| Occupants | 1 | 1 |
| Platform Dimension | 0.67 m x 0.66 m | 0.67 m x 0.66 m |
| Overall Height | 1.99 m | 2.68 m |
| Overall Width | 0.78 m | 0.83 m |
| Overall Length | 1.36 m | 1.46 m |
| Outrigger Coverage | 1.7 m x 1.7 m | 2.1 m x 2 m |
| Weight (AC) | 370 kg | 490 kg |
| Weight (DC) | 395 kg | 515 kg |
| AC Motor | 0.75 kW | 0.75 kW |
| DC Motor | 12 V | 12 V |
| DC Motor Output | 1.6 kW | 1.6 kW |
| Charger | 12V/15A | 12V/15A |
