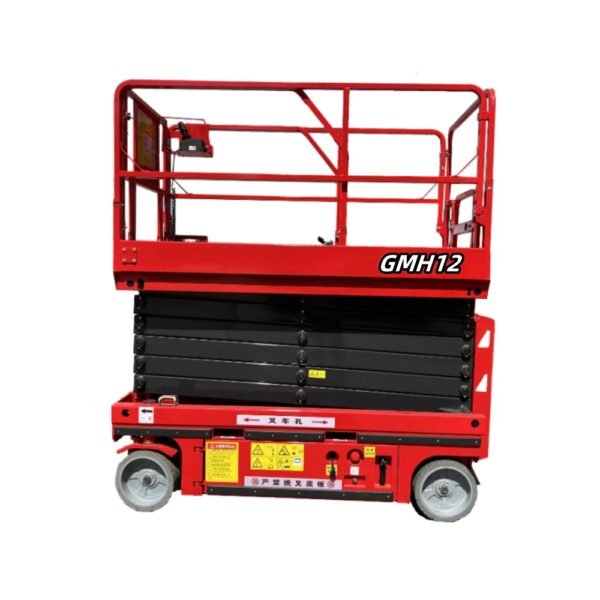

GMHLIFT Scissor Lift-GMH12
$100.00
Working height??14m
Load capacity:? 320kg
Platform size??2271*1110mm
Product Description
? Strong stabilityatheight;
? Non-marking tires
? True zeroinside turning radius, working wellin tight areas;
? Swing doors on bothsides,easy for?maintenance;
? Extended duty cycle due tohighly efficient?design.
? Safetyprotections: tilting sensor / overload sensor /pithole?protection / automatic?braking?/?manual lowering / automatic stop when overheated / safety valve?on?hydraulic cylinder

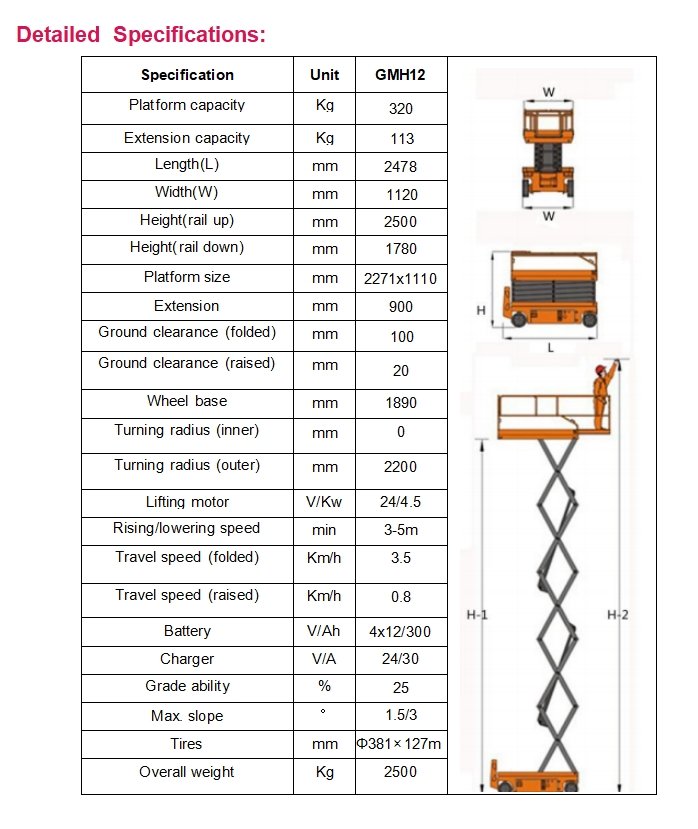

Additional Information
| Platform capacity | 320kg |
|---|---|
| Extension capacity | 113kg |
| Length(L) | 2478mm |
| Width(W) | 1120mm |
| Height(rail up) | 2500mm |
| Height(rail down) | 1780mm |
| Platform size | 2271x1110mm |
| Extension | 900mm |
| Ground clearance (folded) | 100mm |
| Ground clearance (raised) | 20mm |
| Wheel base | 1890mm |
| Turning radius (inner) | 0 |
| Turning radius (outer) | 2200mm |
| Lifting motor | 24/4.5V/Kw |
| Rising/lowering speed | 3-5min |
| Travel speed (folded) | 3.5Km/h |
| Travel speed (raised) | 0.8Km/h |
| Battery | 4×12/300V/Ah |
| Charger | 24/30V/A |
| Gradeability | 25% |
| Max. slope | 1.5/3?? |
| Tires | ??381?? 127mm |
| Overall weight | 2500kg |
