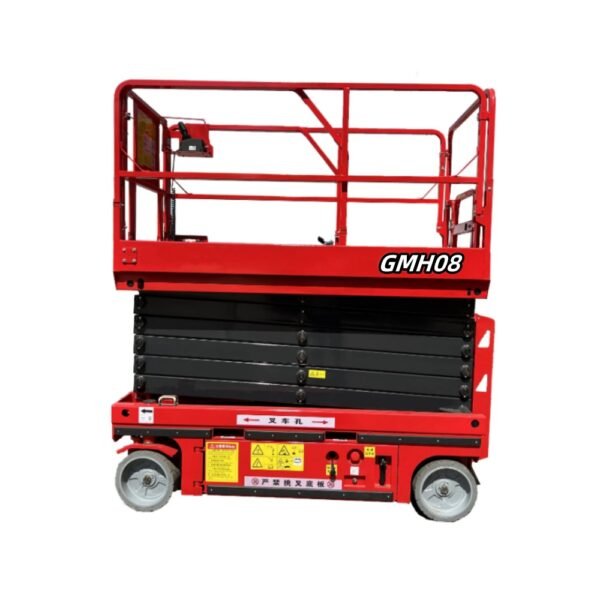

GMHLIFT Scissor Lift-GMH08
$100.00
Working height??10m
Load capacity:? 450kg
Platform size??2271*1110mm
Product Description
- Strong stability at height, ensuring safe operation in elevated positions
- Non-marking tires, preventing damage to floors and surfaces
- True zero inside turning radius, ideal for maneuvering in tight spaces
- Swing doors on both sides, allowing easy access for maintenance
- Extended duty cycle, thanks to the highly efficient design
- Safety protections, including:
- Tilting sensor
- Overload sensor
- Pothole protection
- Automatic braking
- Manual lowering
- Automatic stop when overheated
- Safety valve on hydraulic cylinder
| Specification | GMH08 |
|---|---|
| Platform capacity | 230 Kg |
| Extension capacity | 110 Kg |
| Length(L) | 1860 mm |
| Width(W) | 800 mm |
| Height(rail up) | 2200 mm |
| Height(rail down) | 1750 mm |
| Platform size | 1680*740*1100 mm |
Additional Information
| Platform capacity | 450kg |
|---|---|
| Extension capacity | 113kg |
| Length(L) | 2480mm |
| Width(W) | 1190mm |
| Height(rail up) | 2250mm |
| Height(rail down) | 1535mm |
| Platform size | 2271x1110mm |
| Extension | 900mm |
| Ground clearance (folded) | 100mm |
| Ground clearance (raised) | 20mm |
| Wheel base | 1890mm |
| Turning radius (inner) | 0mm |
| Turning radius (outer) | 2200mm |
| Lifting motor | 24/4.5V/Kw |
| Rising/lowering speed | 3-5min |
| Travel speed (folded) | 3.5Km/h |
| Travel speed (raised) | 0.8Km/h |
| Battery | 4×12/200V/Ah |
| Charger | 24/30V/A |
| Grade ability | 25% |
| Max. slope | 1.5/3?? |
| Tires | ??381??127mm |
| Overall weight | 2200kg |
