GMHLIFT Agriculture Platform
$5,000.00
Maximum Speed??25 km/h
Safe Working Load (SWL)??Front 1500kgs+Rear 400kgs
Gear shift??3F+1R
Product Description

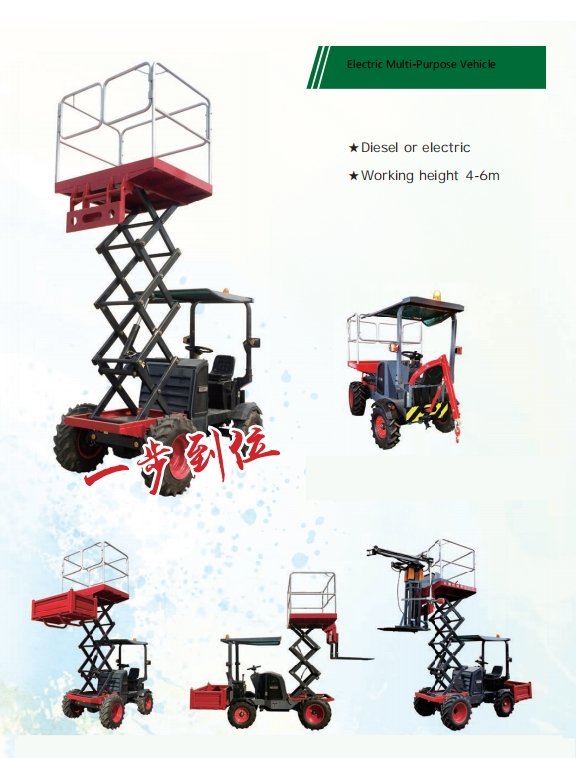

Electric / Diesel Multi-Purpose Vehicle
Self-designed chassis, mechanical, electrical, hydraulic integration technology
Imported circuit control system has stable performance, convenient operation

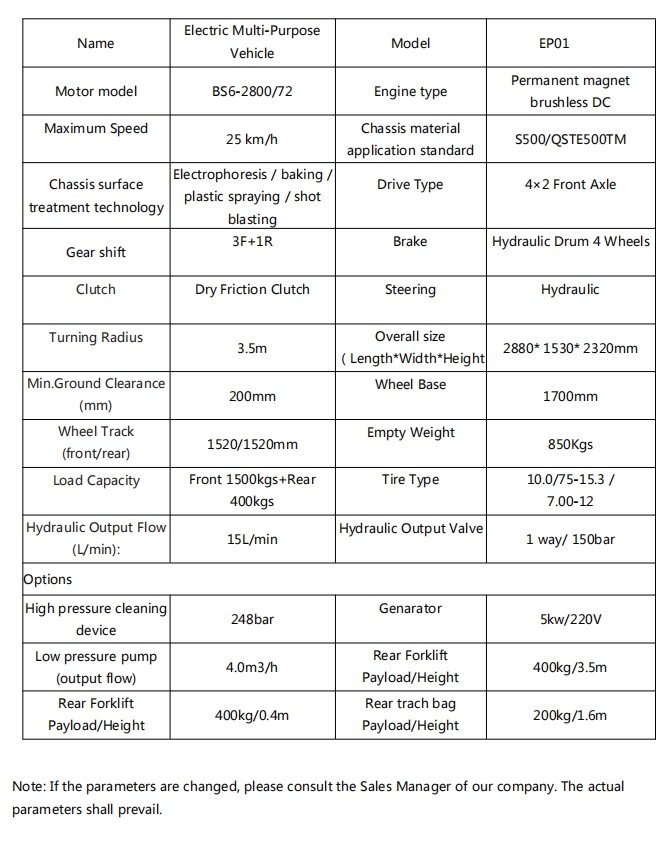

Additional Information
| Name | Electric Multi-Purpose Vehicle |
|---|---|
| Motor model | BS6-2800/72 |
| Maximum Speed | 25 km/h |
| Chassis surface treatment technology | Electrophoresis / baking /plastic spraying / shot blasting |
| Gear shift | 3F+1R |
| Clutch | Dry Friction Clutch |
| Turning Radius | 3.5m |
| Min.Ground Clearance (mm) | 200mm |
| Wheel Track (front/rear) | 1520/1520mm |
| Load Capacity | Front 1500kgs+Rear 400kgs |
| Hydraulic Output Flow (L/min) | 15L/min |
| High pressure cleaning device | 248bar |
| Low pressure pump (output flow) | 4.0m3/h |
| Rear Forklift Payload/Height | 400kg/0.4m |
